Spiromatic 90U reykköfunartæki til viðskiptavinar

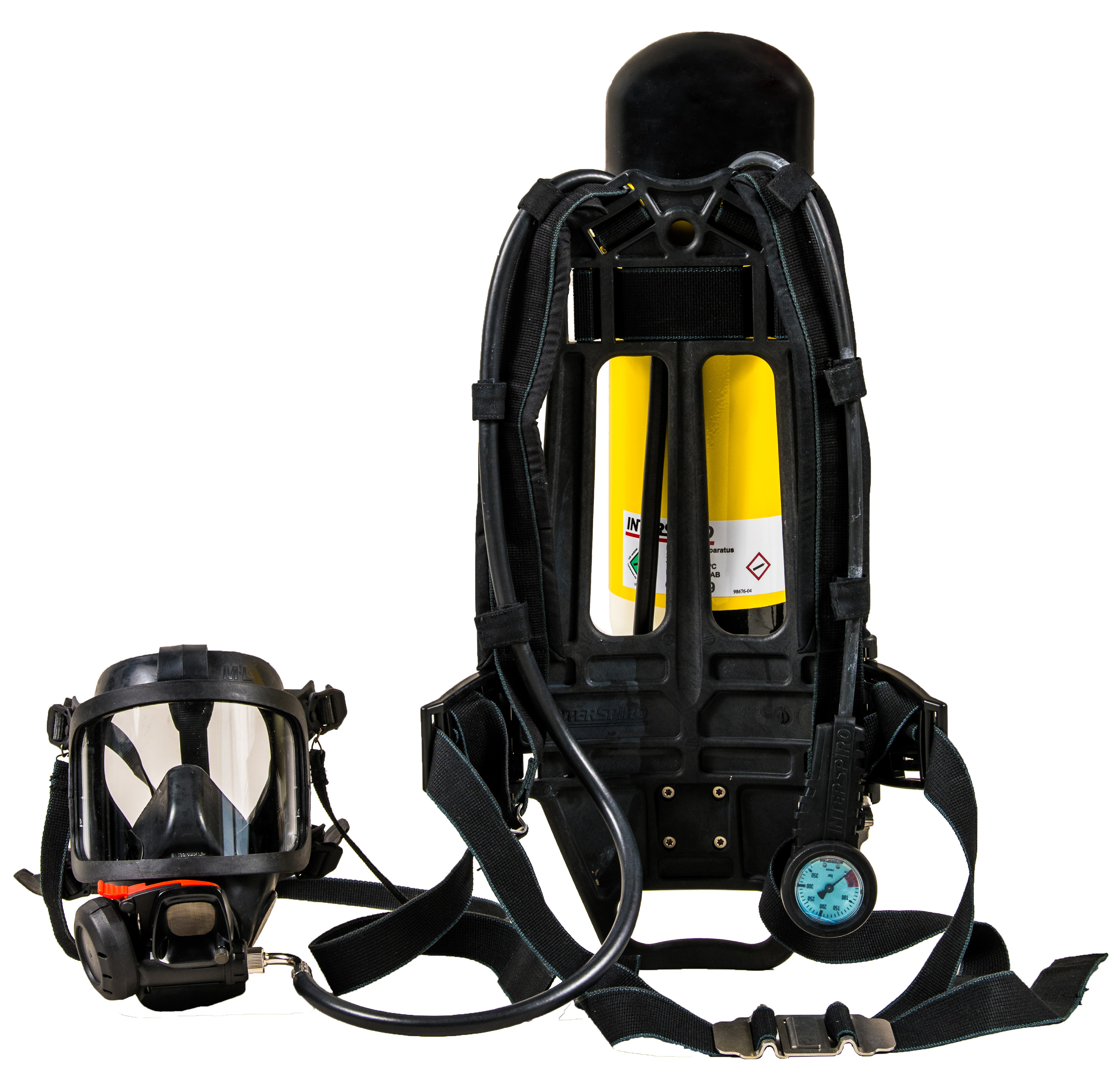

The Spiromatic 90U is a basic breathing apparatus for firefighting, excellent also for industrial and maritime environments. The configurations are CE approved according to European product standards and approved according to the Marine Equipment Directive (“ship wheel mark”).

Spiromatic 90U is built upon the proven and reliable S-facemask and breathing valve and the plug-in regulator system, delivering Interspiro performance at a competitive price. The harness is equipped with padded shoulder straps and easy-to-adjust waist belt buckle.

The apparatus has a pressure gauge, warning whistle and optional extra air connection. The plug-in type regulator is durable and has proven functionality with high flow capacity maintaining the safety pressure also at an extreme rate of breathing and low cylinder pressures. The plug-in type design makes service and repairs easy to perform with short down time.

• Open back plate for good ventilation and low weight
• Easy to handle and adjustable cylinder strap
• Small and light warning whistle placed on chest
• Carrying handle integrated in backplate
• Well-proven and robust pneumatics
• Mask and breathing valve in a compact design


There are variants both excluding and including face mask and breathing valve. Variants including face mask and breathing valve have two optional mask types:

1. Ambient air hatch - enables extended duration time by using ambient air in stand-by.
2. First breath version - activates automatically when user takes the first breath.

The face masks are further presented under “Firefighting” & “Face Masks”.

Variants are available without extra connections (basic configuration) or with extra connection on the breathing hose and/or extra air connection for airline supply.

The Interspiro ultra-light full composite cylinders comes in volume 6.8 Liter with an unlimited service life, ”NLL” — Non-Limited Life. It provides very low weight and reliable construction. The cylinder can be equipped with an optional Cylinder Quick coupling.

There are several options for the cylinder valves:
Excess Flow Valve (EFV) = Reducing the air flow from the cylinder in case of damage or unintentional opening.
Safety ratchet = Mechanism preventing unintentional closing, "pull-to-close" or "push-to close".
Pressure gauge = Integrated small pressure gauge showing cylinder pressure.
Burst disc = A pressure relief device that protects the cylinder from overpressurization.

The following cylinder valve combinations are available.

• In-line variant with hand wheel pointing straight down from the cylinder.
  1. Basic version
  2. EFV
  3. EFV + safety ratchet
  4. EFV + safety ratchet + pressure gauge

• 90° variant with hand wheel angled 90° from the regulator connection.
  Comes as standard with burst disc, safety ratchet and EFV.
  1. Basic version, push-to-close ratchet
  2. Pressure gauge, pull-to-close ratchet



• 180° variant with hand wheel angled 180° from the regulator connection.
  Comes as standard with burst disc, push-to-close safety ratchet and EFV.
  1. Basic version
  2. Pressure gauge

 The cylinder is delivered painted yellow.
