LENTSTAL WALTHER COMPONENTS

Medium expansion foam pistol
KR 03/90 and
KR 03/90 ARC

KR 03/90 TOTAL Millifroðubyssa

	Easy to use for untrained personnel
	Can be connected to a wall hydrant with minimum 20 mm diameter hose
	Performs at a water pressure of 2 - 4 bar
	Needs no extra proportioning equipment

1. Application

Industrial workshops and warehouses as well as for fire brigades.

2. Recommended Foam Concentrates

Multi purpose foam concentrate with KR 03/90 and alcohol resistant foam concentrate with KR 03/90 ARC.

3. Operation

Simply turn on the tap and squeeze the trigger. Medium expansion foam is produced over a wide range of water pressures. With this light-weight foam pistol it is possible to extinguish small liquid fires or class A fires. The foam pistol is also suitable for filling small rooms and blanketing flammable liquids as a preventive measure, for example when welding. By using a foam pistol it is possible to expand water up to 75 times. This is a much more effective extinguishing agent than plain water. Foam is ideal to extinguish liquid fires, but is also effective on other types of fire.

4. Construction

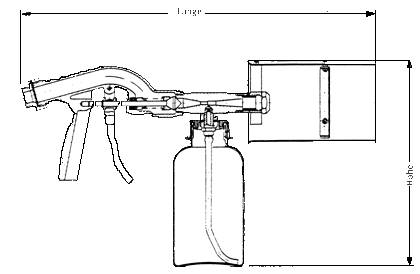

The foam pistol has a built-in inductor to proportion the foam concentrate. Foam is drawn from a 2 or 5 litre container by a water pressure of 2-4 bar and sent along a 20 mm diameter hose up to 30 m in length.

5. Technische Daten

Type	KR03/90	KR03/90 ARC
Foam Concentrate	2 l towalex MB 15	2 l towalex ARC 3 x 6
Operating pressure water line	2-4 bar	2-4 bar
Water flow	30 - 40 lpm	30 - 40 lpm
Throw range	2-4 m	2-4 m
Discharge with 2 litres foam concentrate	1,5 - 2 min	1 - 1,5 min.
Foam volume	6 m3	2,5 m3
Length	625 mm	625 mm
Height	400 mm	400 mm
Width	140 mm	140 mm
Weight empty, approx.	2,9 kg	2,9 kg
Part-No.	824.161	824.054

Experts in Fire Fighting
